MEP Scan to BIM: Avoiding Clash Detection Errors in Existing Buildings

Blog content image

Late-stage MEP clashes are still one of the most expensive failures in existing building projects. Not because teams ignore coordination, but because they coordinate using incomplete information. In retrofit work, undocumented services, shifted structure, and legacy routing create blind spots that 2D drawings and manual surveys cannot close.

Rework from these clashes typically consumes 4–6% of project value, according to Autodesk’s construction industry data.

For MEP-heavy renovations, that number climbs fast once demolition, labor remobilization, and schedule recovery are factored in. And unlike new construction, existing buildings offer no buffer. Systems are live, spaces are tight, and shutdown windows are short.

Using MEP Scan to BIM services, AEC professionals can address this gap by grounding coordination in reality, not assumptions. By combining laser-scanned conditions with discipline-specific BIM models, teams detect conflicts before fabrication and installation.

This article explains how MEPF Scan to BIM Modeling for existing buildings stops those late surprises, and how to build a repeatable process your firm can actually run.

Common Clash Detection Challenges in Existing Buildings

Retrofit projects repeatedly fail for the same reasons, but they behave very differently than coordination issues in new construction. These clashes are driven by building history, undocumented changes, and layered trade work that standard workflows don’t account for.

The Hidden MEP Problem: Undocumented systems behind walls, above ceilings, in plenum spaces

Two things happen here. First, original contractors cut or rerouted systems during earlier renovations with no drawing updates. Second, access is restricted in ceiling tiles, finished walls, and active equipment. Scans help, but access planning matters. We have seen data centers where emergency fire mains were tucked behind a utility rack, invisible to the design drawings but visible in the point cloud. If you skip targeted scanning in service zones, you miss the very things that cause the big delays.

Legacy Infrastructure Gaps: Hard clashes and soft clashes

Hard clashes are physical overlaps, like a duct cutting through a structural beam. Soft clashes are clearance or code violations, like insufficient working clearances at an electrical panel.

These clashes matter because multiple case studies say hard clashes typically cost $10K–$50K to resolve during design. On site, they jump to $100K–$500K once demolition and schedule fallout are included. Soft clashes are overlooked during visual inspections, leading to issues in final inspections and potential rework late in the commissioning phase. That’s why MEPF BIM models must represent both geometry and required clearances.

Space Constraints: Mechanical floors, riser shafts, basements

Riser shafts, mechanical mezzanines, and basements concentrate services and create dense conflict zones. You get tight bends, stacked services, and legacy sleeves that don’t match today’s routing needs. That’s why Scan to BIM for MEP systems must be high-resolution and targeted; low-resolution scans give you false confidence.

Why Traditional MEP Documentation Causes Errors

Traditional documentation fails in retrofit projects because it’s built on outdated and incomplete information. When drawings don’t reflect current conditions, every coordination decision rests on a false foundation.

2D Drawings Cannot Capture 3D Complexity

Plan views flatten the building. Short vertical offsets, slab level changes, or interstitial plenum runs are invisible in 2D. A 2D plan will not show a duct rising 200 mm to clear rebar above a slab. That vertical problem becomes a cut-and-cover fix on site.

Manual Measurement Errors

Manual surveying builds cumulative error, like tape measures, short baselines, and spot checks. A single 50 mm error repeated across a run multiplies into misaligned fittings, penetrations, and rework. Surveys done in tight or inaccessible spaces increase the odds of mistaken baselines.

Documentation Time Lag

As-builts created months or years after construction rarely reflect modifications. Contractors re-route, owners retrofit, and nobody updates record drawings. That gap makes the as-built a guess, not a source of truth.

Therefore, typical manual surveying error ranges ±50–100 mm, while laser scanning regularly achieves single-digit ±5-10 mm accuracy. That gap is why MEPF Scan to BIM Services is necessary.

What Is MEP Scan to BIM and How It Works

Point cloud to BIM MEP helps in converting existing conditions into a coordinated, model-based reference for decision-making. Skipping even one step can result in accuracy drop and increase in coordination risk.

1. Site Scanning

High-quality LiDAR or phase-based scanners capture millions of 3D points. For busy sites mixed approach is used. Tripod scanners for geometry, handheld scanners for tight corridors, and targeted photogrammetry where texture helps.

2. Point Cloud Registration & Processing

Raw scans are aligned to project coordinates, cleaned of noise, and clipped to zones. Good registration is non-negotiable. If scans are misaligned by 10–20 mm, your BIM will inherit that error. Automated targetless registration helps, but always verify with control points.

3. BIM Modeling by Discipline

MEP modelers extract ducts, conduits, pipes, hangers, and fittings into discipline-specific families at the required LOD (Level of Development). For coordination, we recommend LOD 300 because geometry and connectors are sufficient for clash detection in existing buildings and prefabrication decisions. You can also push to LOD 350 for fabrication, but expect model time to climb.

4. Model Validation

This is the quality check of scan to Building Information Model for MEP systems. Automated or manual checks are run that compare the modeled geometry back to the point cloud and report deviations. Typical QA thresholds flag anything beyond ±10 mm for further review to adjust per project risk.

Our AI-powered automated model validates BIM models against point clouds, identifying deviations and clearance issues before coordination

5. Trade Integration & Clash Testing

Using Navisworks, Solibri, or a cloud-based engine, clash tests are run in federated disciplined models with trade-specific rules. Automate recurring checks and produce prioritized clash lists.

6. Clash Review & Resolution

Once the clashes are identified, review clashes in structured coordination meetings, assign trade ownership, and evaluate constructability impacts. You should prioritize issues affecting safety, structure, and installation sequence before secondary clearance conflicts.

7. Model Update & Coordination Freeze

Resolved clashes are incorporated into discipline models and re-federated. Once critical zones are cleared, freeze the coordinated model to prevent uncontrolled changes during fabrication and installation planning.

8. Final Model Delivery & Export

Deliver coordinated Revit and IFC models with documented LOD, accuracy tolerances, and resolved clash logs. This model becomes the verified reference for construction, facility management, and future renovations.

Scan to BIM Accuracy Standards Across the Workflow

StageTypical Accuracy RangeWhat This Means in Practice
Laser Scanning (Static Capture)±1–3 mm (lab conditions)Scanner precision is highest at short ranges and clean surfaces. Field accuracy varies with distance, surface reflectivity, and site access limitations.
Registered Point Cloud±2–5 mmAchievable with proper control points, scan overlap, and registration QA. Any misalignment here directly carries into modeling and coordination outcomes.
Final BIM Model (LOD 200–500)±10–20 mm (varies by LOD)Accuracy depends on intended use: coarser tolerances at LOD 200 for layout planning, tighter control at LOD 300–350 for coordination, and discipline-specific precision at LOD 400–500.

Role of Laser Scanning in Accurate MEP Modeling

Laser scanning changes the quality of information teams coordinate against, especially in existing buildings. The following points explain the specific technical advantages that make this difference.

360° Capture of Hidden Systems

Scanners capture above-ceiling runs and behind panels in a single pass. That matters because those hidden runs are the ones you are most likely to discover late. If you plan scans for service zones and risers, you avoid surprises.

Millimeter-Level Precision

High-end scanners often quote ±1-5 millimeter noise for short-range scans. Leica’s product range and FARO’s Focus line show ±5 mm field accuracy on common models. That precision detects soft clashes, like a panel spacing short by 150 mm, that manual measurement misses.

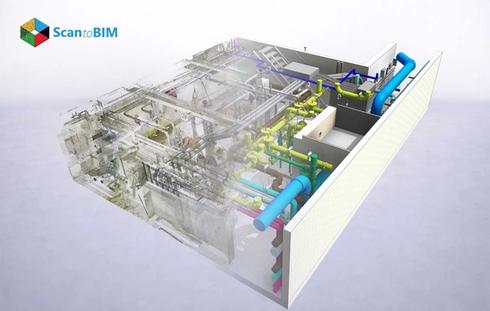

From Point Cloud to Clash-Ready Models

Parametric families let you test thousands of clashes in minutes. Where manual coordination takes days to spin up, model-based clash testing iterates quickly and creates traceable clash snapshots for every trade.

Blog content image

How Scan to BIM Reduces Clash Detection Errors

Scan to BIM doesn’t magically eliminate clashes. What it does is remove MEP clash detection errors that cause them to slip through until installation. In existing buildings, that difference matters.

  • You Coordinate With What Actually Exists, Not What Drawings Suggest: When models are built from point clouds, undocumented offsets, dropped ceilings, and rerouted services are already visible. That alone removes a large class of surprise clashes.
  • Hard and Soft Clashes Show Up Earlier,and More Clearly: Physical overlaps are obvious, but clearance issues are where Scan to BIM quietly pays off. Electrical working space, valve access, maintenance zones, etc., are easy to miss without scan-accurate geometry.
  • Clashes Become Measurable, Not Subjective: During coordination reviews, teams can quantify conflicts by distance, severity, and downstream impact. That changes the conversation from opinions to decisions.
  • Trade Coordination Improves Because Geometry is Trusted: We have seen fewer defensive reactions once trades accept that the model reflects reality. That results to fewer RFIs, shorter meetings, and faster resolutions.
  • Errors Shift From The Field To The Model: Fixing a clash in Navisworks costs time. Fixing it on site costs money, schedule, and credibility.

MEPF Scan to BIM Services doesn’t just help find problems sooner. It changes where mistakes happen, and that’s the real value.

Benefits of Accurate MEP Coordination for Renovation Projects

In renovation projects, accurate MEP coordination directly affects rework, schedule certainty, and operational continuity. The gains show up where executives track performance.

  • Reduced Rework and Contingency Drawdown: Scan-based coordination regularly reduces MEP rework allowances by 30–50% in high-risk zones such as risers, mechanical floors, and interstitial spaces. Results depend on scan coverage and LOD discipline, but the trend is consistent.
  • Shorter Installation Timelines: Coordinated models enable off-site prefabrication and cleaner installation sequences. Global studies say that mid-scale retrofits, this typically compress schedules by 2–4 weeks and cut fieldlabor hours by 30–50% for assembly-heavy scopes.
  • Lower Disruption in Occupied Buildings: Accurate coordination supports phased shutdowns and temporary system routing. Hospitals, data centers, and active offices keep going operations while retrofit work is in progress, avoiding revenue loss and safety incidents.
  • Less RFIs and Reduced Late Change Orders: When geometry is trusted, coordination decisions move upstream, reducing reactive RFIs and costly last-minute design changes.

This isn’t optimization. It’s risk control, applied early.

Best Practices for MEP Scan to BIM Implementation

An actionable framework your project team can adopt.

  • Define scope and LOD before you scan. Decide which areas get LOD 300 vs. LOD 350. Don’t make modelers guess.
  • Prioritize high-clash zones like risers, mechanical floors, basements, and tenant-fit areas.
  • Set trade-specific clearance rules and embed them in clash-testing software.
  • Freeze the existing model after QA and record a checkpoint, then use iterative weekly reviews with trades.
  • Archive resolved clash snapshots for QA and claims protection.

Typical Timeline (8-Week Example)

  • Weeks 1–2: Scanning, control, registration.
  • Weeks 2–4: Point cloud processing + initial modeling.
  • Weeks 4–6: Discipline modeling to LOD 300.
  • Weeks 6–8: Federated clashes, iterative resolution, prefabrication packages.

Three Practical Checks We Use on Every Job:

  • Verify registration against three independent control points.
  • Run a “clearance audit” for each panel and service room with a 10 mm tolerance.
  • Produce clash snapshots with trade owner, resolution owner, and acceptance sign-off.

Real-World Use Cases in Existing Building Renovations

Here are some short case examples with metrics we have managed.

Historic Hospital Retrofit

  • Problem: Complex riser upgrades and unknown penetrations.
  • Result: 12 hard clashes and 31 soft clashes resolved in design; estimated on-site rework savings $280K. Occupancy kept; critical services unchanged during work.

Data Center Expansion

  • Problem: Dense chilled water and power routing.
  • Result: 47 conflicts identified, 8%required structural coordination ; zero cooling disruptions during cutover.

Industrial Facility Modernization

  • Problem: Legacy conduits and rerouted piping.
  • Result: Eliminated two design revisions; schedule cut from an estimated 8 months to 18 weeks.

These are real outcomes. Your actual savings depend on scan scope, LOD, and how quickly trades act on the clash reports.

Conclusion: Improving MEP Coordination with Scan to BIM

In renovation projects, MEP coordination rarely fails due to a lack of expertise. It fails because teams are forced to coordinate using drawings that no longer reflect existing conditions. Scan to BIM corrects this problem at the source. By grounding coordination in verified field data, it replaces assumptions with measurable geometry that teams can trust.

Across real renovation environments such as hospitals, commercial buildings, and data centers, the impact is consistent. Accurate scans expose congestion early. Coordinated models support prefabrication and planned installation sequences. Clashes are identified and resolved before construction begins, when changes are still manageable and affordable.

Key takeaways for Clash-free MEPF Scan to BIM Modeling

  • Accurate field data is essential for reliable MEP coordination
  • Early clash resolution reduces rework, RFIs, and schedule uncertainty
  • Point cloud to BIM MEP enables safer execution in occupied and phased renovations
